Plastic Welding Application

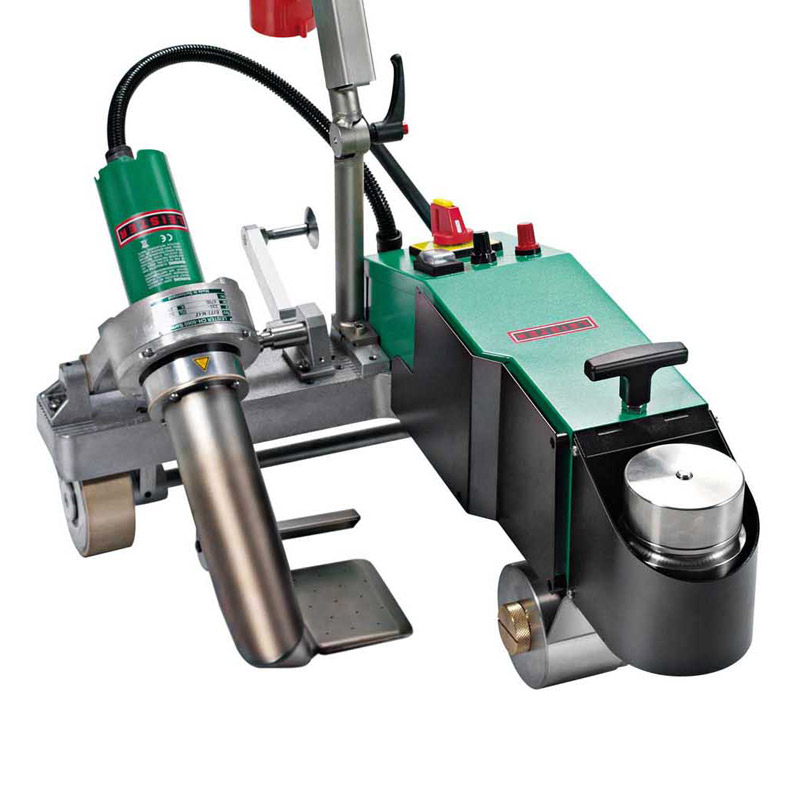

BITUMAT B2

Safe flameless welding of modified bitumen (SBS, APP) with the BITUMAT B2.

หมวดหมู่: , ,
  • Flameless welding of modified bitumen
  • No shrinking of the insulation due to integrated air dam
  • Uniform welding results
  • High working speed
  • Requires only one user to efficiently weld seams
    (torch welding requires two)

Welding of modified bitumen sheeting (SBS, APP) with the flameless BITUMAT B2 is much safer than welding with an open flame. The weld strength is significantly better and the single-step process makes welding more economical.

Technical Data

BITUMAT B2 – 230 V / 6700 W / 100 mm / CEE-plug

Attribute Unit Value
Amperage A 32
Voltage V~ 230
Power W 6700
Width of welding nozzle mm 100
Temperature °C 20 – 650
Speed m/min 0.8 – 12
Air flow range % 85 – 100
Size (L × B × H) mm 690 × 490 × 330
Weight kg 40
Conformity mark CE Certification
Approval mark Sicherheitszeichen-S-+
Protection class I Protection Class I

BITUMAT B2 – 230 V / 6700 W / 75 mm / CEE-plug

Attribute Unit Value
Amperage A 32
Voltage V~ 230
Power W 6700
Width of welding nozzle mm 75
Temperature °C 20 – 650
Speed m/min 0.8 – 12
Air flow range % 85 – 100
Size (L × B × H) mm 690 × 490 × 330
Weight kg 40
Conformity mark CE Certification
Approval mark Sicherheitszeichen-S-+
Protection class I Protection Class I

BITUMAT B2 – 400 V / 6700 W / 100 mm / CEE-plug

Attribute Unit Value
Amperage A 16
Voltage V~ 400
Power W 6700
Width of welding nozzle mm 100
Temperature °C 20 – 650
Speed m/min 0.8 – 12
Air flow range % 85 – 100
Size (L × B × H) mm 690 × 490 × 330
Weight kg 40
Conformity mark CE Certification
Approval mark Sicherheitszeichen-S-+
Protection class I Protection Class I

BITUMAT B2 – 400 V / 6700 W / 75 mm / CEE-plug

Attribute Unit Value
Amperage A 16
Voltage V~ 400
Power W 6700
Width of welding nozzle mm 75
Temperature °C 20 – 650
Speed m/min 0.8 – 12
Air flow range % 85 – 100
Size (L × B × H) mm 690 × 490 × 330
Weight kg 40
Conformity mark CE Certification
Approval mark Sicherheitszeichen-S-+
Protection class I Protection Class I



Downloads

General Catalogs :
GC – General Catalog Plastic Welding (12,92 MB)
BR – Accessories Hot air Hand Tools (3,63 MB)

Manuals :
BA – BITUMAT B2 (1,67 MB)

Brochures :
 BR – Roofing (2,86 MB)
BR – BITUMAT B2 (0,67 MB)
