GEO & Civil EngineeringPlastic Welding Application

COMET USB

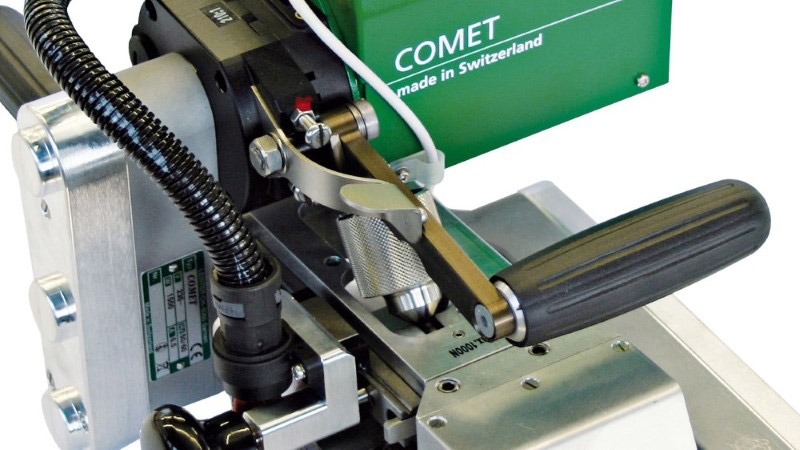

COMET USB’s memory system is designed for use on construction sites, because this compact, hot-wedge welding machine records all relevant welding parameters.

หมวดหมู่: , , ป้ายกำกับ:

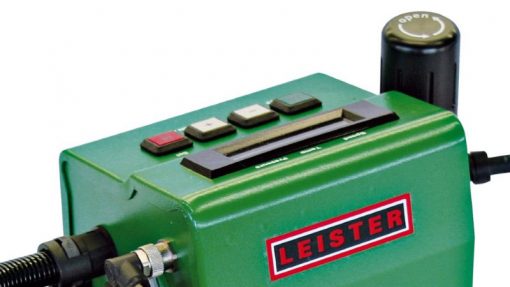

  • Digital display of welding pressure
  • Complete recording of all relevant welding parameters.
  • USB memory system designed for use on construction sites
  • Convenient data transfer

This compact, heavy-duty welding machine is in use worldwide. The small powerhouse is specially designed for the demands of landfill sites, mines and tunnels. Documentation made simple: COMET USB’s memory system is designed for use on construction sites. Because this compact hot-wedge welding machine records all relevant welding parameters, data transfer is mere child’s play.

Technical Data

COMET USB – wedge 50 mm / PE / 230 V / 1200 W / EU-plug

Attribute Unit Value
Power W 1200
Voltage V~ 120 / 230
Max overlap mm 125
Temperature °C 80 – 420
Speed m/min 0.8 – 3.2
Welding pressure N 100 – 1000
Weld seam mm 2 × 15
Material thickness mm 0.5 – 3
USB-memory-stick incl. USB memory stick
Size (L × B × H) mm 295 × 250 × 245
Weight kg 7.5
Conformity mark CE Certification
Protection class I Protection Class I

COMET USB – wedge 70 mm / PE / 230 V / 1500 W / EU-plug

Attribute Unit Value
Power W 1500
Voltage V~ 120 / 230
Max overlap mm 125
Temperature °C 80 – 420
Speed m/min 0.8 – 3.2
Welding pressure N 100 – 1000
Weld seam mm 2 × 15
Material thickness mm 0.5 – 3
USB-memory-stick incl. USB memory stick
Size (L × B × H) mm 295 × 250 × 245
Weight kg 7.5
Conformity mark CE Certification
Protection class I Protection Class I

COMET USB – wedge 95 mm / PE / 230 V / 1850 W / EU-plug

Attribute Unit Value
Power W 1850
Voltage V~ 120 / 230
Max overlap mm 125
Temperature °C 80 – 420
Speed m/min 0.8 – 3.2
Welding pressure N 100 – 1000
Weld seam mm 2 × 15
Material thickness mm 0.5 – 3
USB-memory-stick incl. USB memory stick
Size (L × B × H) mm 295 × 250 × 245
Weight kg 7.5
Conformity mark CE Certification
Protection class I Protection Class I



Downloads

General Catalogs :
GC – General Catalog Plastic Welding (12,92 MB)
BR – Accessories Hot air Hand Tools (3,63 MB)

Manuals :
BA – COMET USB (0,75 MB)
