Improves hot air processes. Air volume and heating capacity can be adjusted independently of one another.
Because air volume and heating performance can be set independently, precisely and reproducibly from each other, frequency converters M 100-012 and M 100-034 improve your hot-air processes. They let blowers turn faster than the mains frequency and therefore reduces the system costs.
For the following blower:
AIRPACK

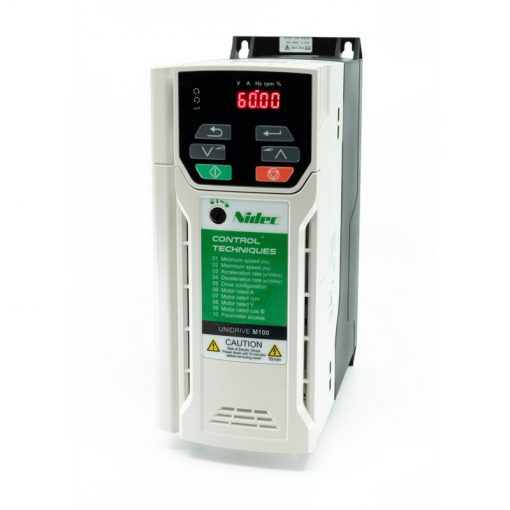

Frequency converter M 100-034
| Attribute | Unit | Value |
|---|---|---|
| Input voltage | V~ | 3 × 380 – 480 |
| Max. blower rated power | W | 2200 |
| Frequency | Hz | 50 / 60 |
| Typical input current at full load | A | 9.6 |
| Output rated power (100%) | A | 5.6 |
| Weight | kg | 1.4 |
| Conformity mark |  |
|
| Approval mark |  |
|
| Protection class I |  |
