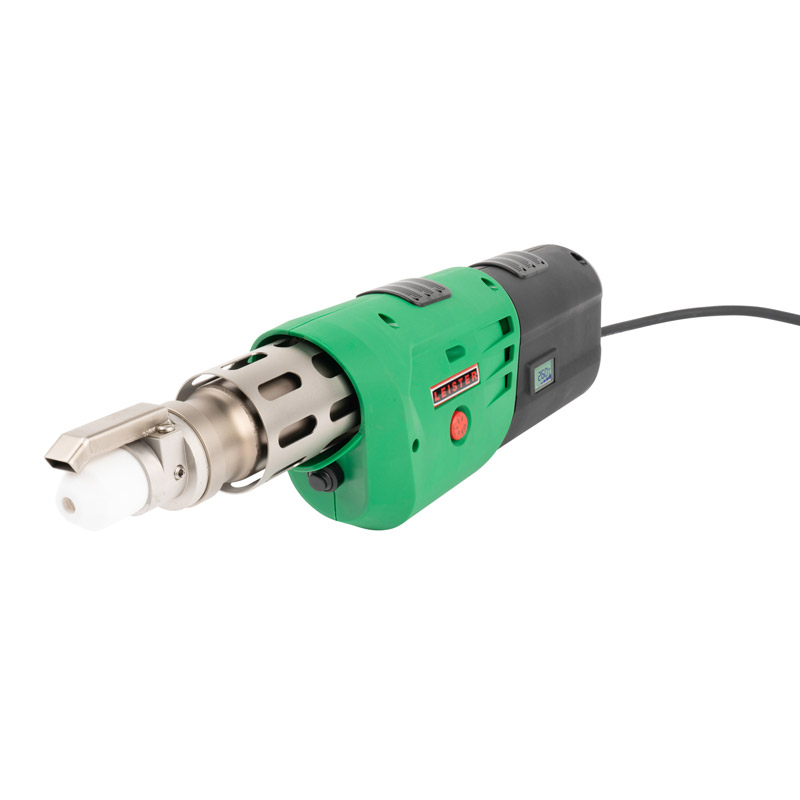

FUSION 1

Extrusion welding redefined – the brilliantly maneuverable Fusion 1 one-hand extruder with reduced design for more flexibility when welding with double-sided wire intake, automatically controlled air temperature, LED light, practical suspension device and removable handle.

หมวดหมู่: , ป้ายกำกับ: ,
  • Rod shape: Reduced design for increased maneuverability in small spaces
  • Double-sided wire intake: For more flexibility when welding
  • LED light: To illuminate the welding area
  • Controlled: Automatically controlled air temperature

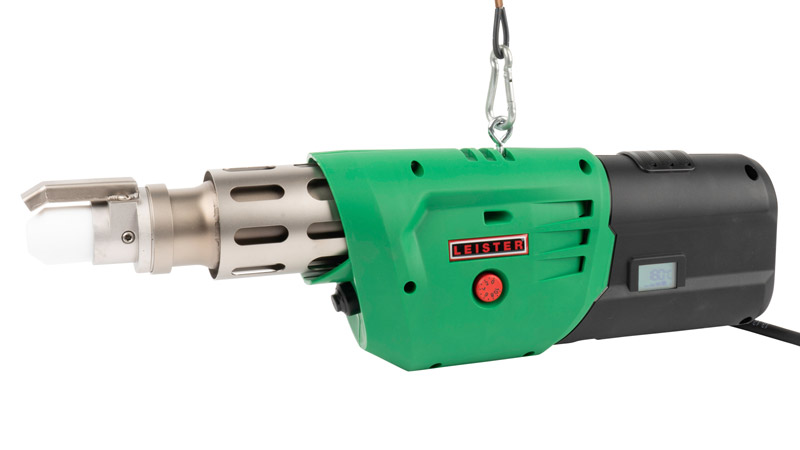

  • Suspension device: Effortlessly weld longer by hanging up the device
  • Compact and slimline: Thanks to integrated air guide

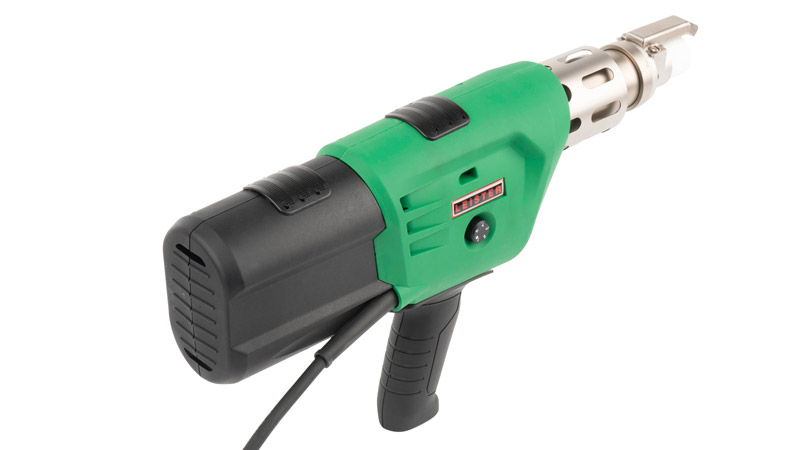

  • Handle: Can be mounted for one-handed welding

Your satisfaction is our goal. Which is why we are developing welding devices to meet your requests and requirements. And with the usual LEISTER quality, of course. The reduced design of the FUSION 1 offers increased maneuverability when welding. More flexibility guarantees an optimally mountable handle.

Brilliantly simple extrusion welding – FUSION 1.

Technical Data

FUSION 1 – 230 V / 1200 W / EU-plug

Attribute Unit Value
Voltage V~ 230
Power W 1200
Frequency Hz 50/60
Air temperature °C 180 – 350
Max. Plastification temperature °C 300
Welding rod mm ∅ 3 – 4
Output ∅ 3 kg / h 0.2 – 0.5
Output ∅ 4 kg / h 0.3 – 0.8
Size (L × B × H) mm 436 × 92 × 133 (236 with handle)
Weight kg 3.4
Conformity mark CE Certification
Protection class II ProtectionClass II

FUSION 1 – 230 V / 1200 W / CH-plug

Attribute Unit Value
Voltage V~ 230
Power W 1200
Frequency Hz 50/60
Air temperature °C 180 – 350
Max. Plastification temperature °C 300
Welding rod mm ∅ 3 – 4
Output ∅ 3 kg / h 0.2 – 0.5
Output ∅ 4 kg / h 0.3 – 0.8
Size (L × B × H) mm 436 × 92 × 133 (236 with handle)
Weight kg 3.4
Conformity mark CE Certification
Protection class II ProtectionClass II

FUSION 1 – 230 V / 1200 W / CEE 16A 3 Pol blue

Attribute Unit Value
Voltage V~ 230
Power W 1200
Frequency Hz 50/60
Air temperature °C 180 – 350
Max. Plastification temperature °C 300
Welding rod mm ∅ 3 – 4
Output ∅ 3 kg / h 0.2 – 0.5
Output ∅ 4 kg / h 0.3 – 0.8
Size (L × B × H) mm 436 × 92 × 133 (236 with handle)
Weight kg 3.4
Conformity mark CE Certification
Protection class II ProtectionClass II

FUSION 1 – 120 V / 1450 W / US-plug

Attribute Unit Value
Voltage V~ 120
Power W 1450
Frequency Hz 50/60
Max. Plastification temperature °F 572
Output ∅ 3 lbs / hr 0.6 – 1.0
Conformity mark CE Certification
Protection class II ProtectionClass II



Downloads

General Catalogs :
GC – General Catalog Plastic Welding (12,92 MB)
BR – Accessories Hot air Hand Tools (3,63 MB)

Manuals :
QG – FUSION 1 (0,74 MB)
Safety instructions – Automatic Welders / Extrusion Welders / Welding Machines (33,26 MB)
BA – FUSION 1 – LT LV HR TH JA AR KO (9,30 MB)
BA – FUSION 1 – DE EN IT FR ES (4,74 MB)

VDO

Extrusion welding FUSION 1 for apparatus and container fabrication

Extrusion welding reinvented – FUSION 1 – Agile to use – even in small spaces

Extrusion welding reinvented – FUSION 1 – Plastic repair easily done
