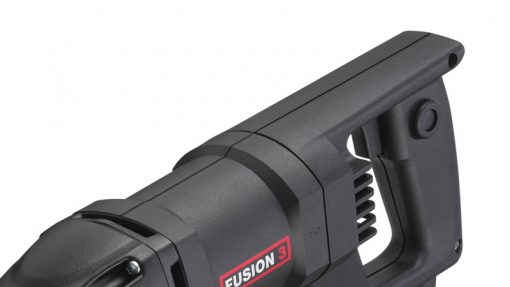

With its long and narrow shape, the FUSION 3 enables comfortable work, even on the floor.
With its long and narrow shape, the FUSION 3 enables comfortable work, even on the floor. The somewhat shorter version (FUSION 3C) provides an astounding output volume of up to 3.6 kilograms (eight pounds) per hour.
FUSION 3 – 230 V / 3500 W / Welding rod ∅ 3 – 4 mm / EU-plug
| Attribute | Unit | Value |
|---|---|---|
| Welding rod | mm ∅ | 3 – 4 |
| Output ∅ 3 | kg / h | 2.0 – 2.5 |
| Output ∅ 4 | kg / h | 2.7 – 3.6 |
| Output PP ∅ 3 | kg / h | 1.8 – 2.3 |
| Output PP ∅ 4 | kg / h | 2.5 – 3.4 |
| Voltage | V~ | 230 |
| Power | W | 3500 |
| Material | PE / PP | |
| Max. air outlet temperature | °C | 350 |
| Max. Plastification temperature | °C | 350 |
| Output PE ∅ 4 | kg / h | 2.1 – 2.6 |
| Output PE ∅ 5 | kg / h | 2.7 – 3.6 |
| Output PP ∅ 5 | kg / h | 2.5 – 3.4 |
| Size (L × B × H) | mm | 670 × 90 × 180 |
| Weight | kg | 7.2 |
| Conformity mark |  |
|
| Protection class II |  |
FUSION 3 – 230 V / 3500 W / Welding rod ∅ 4 – 5 mm / EU-plug
| Attribute | Unit | Value |
|---|---|---|
| Welding rod | mm ∅ | 4 – 5 |
| Output PE ∅ 4 | kg / h | 2.1 – 2.6 |
| Output PE ∅ 5 | kg / h | 2.7 – 3.6 |
| Output PP ∅ 4 | kg / h | 1.8 – 2.4 |
| Output PP ∅ 5 | kg / h | 2.5 – 3.4 |
| Voltage | V~ | 230 |
| Power | W | 3500 |
| Material | PE / PP | |
| Max. air outlet temperature | °C | 350 |
| Max. Plastification temperature | °C | 350 |
| Output ∅ 3 | kg / h | 2.0 – 2.5 |
| Output ∅ 4 | kg / h | 2.7 – 3.6 |
| Output PP ∅ 3 | kg / h | 1.8 – 2.3 |
| Size (L × B × H) | mm | 670 × 90 × 180 |
| Weight | kg | 7.2 |
| Conformity mark | |
|
| Protection class II | |
