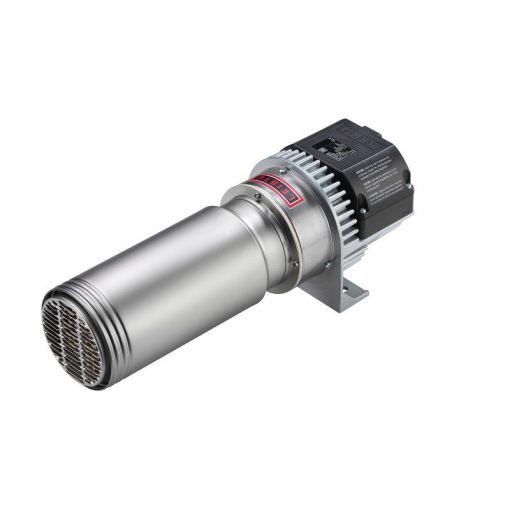

High temperature air heater up to 900°C / 1,652°F. Minimal air volume 800 Nl/min.
The high temperature air heaters are suitable for temperatures up to 900°C / 1,652°F. The devices have no integrated power electronics. The outlet air temperature can be steplessly controlled by adding a Leister three-phase controller (DSE). In addition to a DSE, the air temperature can be precisely regulated with a KSR DIGITAL controller.
Technical Da
LE 10000 HT – 3 x 400 V / 15 kW
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 3 x 400 |
| Power | W | 15000 |
| Max. air outlet temperature | °C | 900 |
| Min. air volume (20°C) | Nl/min | 800 |
| Max. air inlet temperature | °C | 100 |
| Max. ambient temperature | °C | 100 |
| Size (L × B × H) | mm | 402 × 135 × 144 |
| Weight | kg | 4.0 |
| Conformity mark |  |
|
| Protection class I |  |
LE 10000 HT – 3 x 480 V / 15 kW
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 3 x 480 |
| Power | W | 15000 |
| Max. air outlet temperature | °C | 900 |
| Min. air volume (20°C) | Nl/min | 800 |
| Max. air inlet temperature | °C | 100 |
| Max. ambient temperature | °C | 100 |
| Size (L × B × H) | mm | 402 × 135 × 144 |
| Weight | kg | 4.0 |
| Conformity mark | |
|
| Protection class I | |
