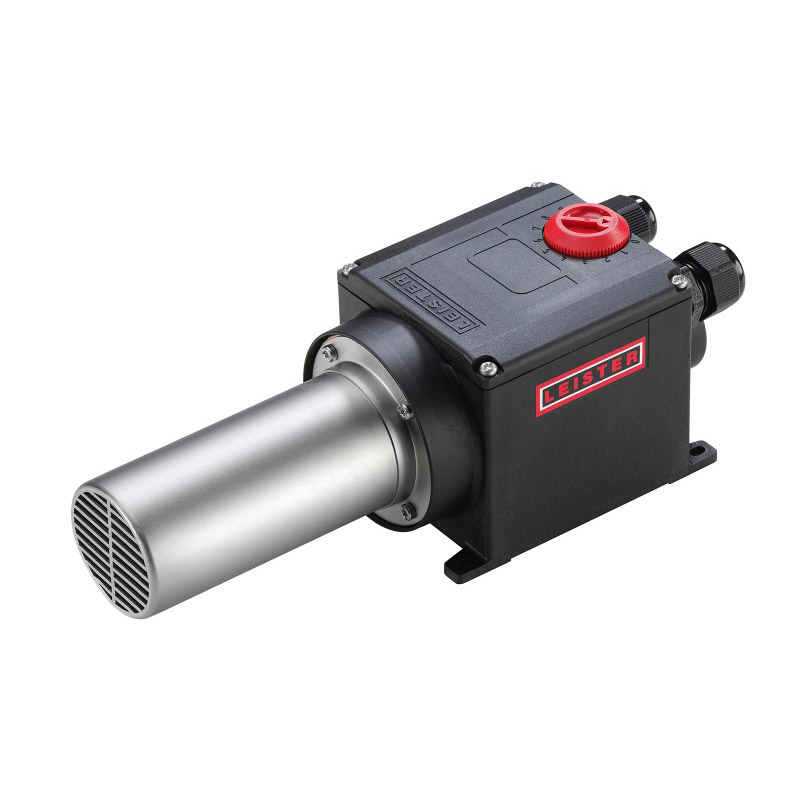

Wide array of applications. Heating power steplessly adjustable with potentiometer.
The medium-sized LHS 41 series air heaters cover an extremely wide application range. The small footprint enables easy integration into machines. The heater tube diameter of 50 mm (~2 in.) allows for the passing of sufficient air flow, and also is suitable for high performance applications.
LHS 41S PREMIUM – 120 V / 2.0 kW
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 120 |
| Power | W | 2000 |
| Max. air outlet temperature | °C | 650 |
| Max. air inlet temperature | °C | 65 |
| Max. ambient temperature | °C | 65 |
| Relative humidity (non condensing) | % | 5 – 95 |
| Max. inlet pressure | kPa | 100 |
| Size (L × B × H) | mm | 245 × 85 × 91 |
| Weight | kg | 0.85 |
| Conformity mark |  |
|
| Approval mark |  |
|
| Protection class II |  |
LHS 41S PREMIUM – 230 V / 2.0 kW
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 230 |
| Power | W | 2000 |
| Max. air outlet temperature | °C | 650 |
| Max. air inlet temperature | °C | 65 |
| Max. ambient temperature | °C | 65 |
| Relative humidity (non condensing) | % | 5 – 95 |
| Max. inlet pressure | kPa | 100 |
| Size (L × B × H) | mm | 245 × 85 × 91 |
| Weight | kg | 0.85 |
| Conformity mark | |
|
| Approval mark | |
|
| Protection class II | |
LHS 41S PREMIUM – 230 V / 3.6 kW
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 230 |
| Power | W | 3600 |
| Max. air outlet temperature | °C | 650 |
| Max. air inlet temperature | °C | 65 |
| Max. ambient temperature | °C | 65 |
| Relative humidity (non condensing) | % | 5 – 95 |
| Max. inlet pressure | kPa | 100 |
| Size (L × B × H) | mm | 245 × 85 × 91 |
| Weight | kg | 0.85 |
| Conformity mark | |
|
| Approval mark | |
|
| Protection class II | |
