40 kW device. Remote control interface for Leister CSS or SPS temperature controller.

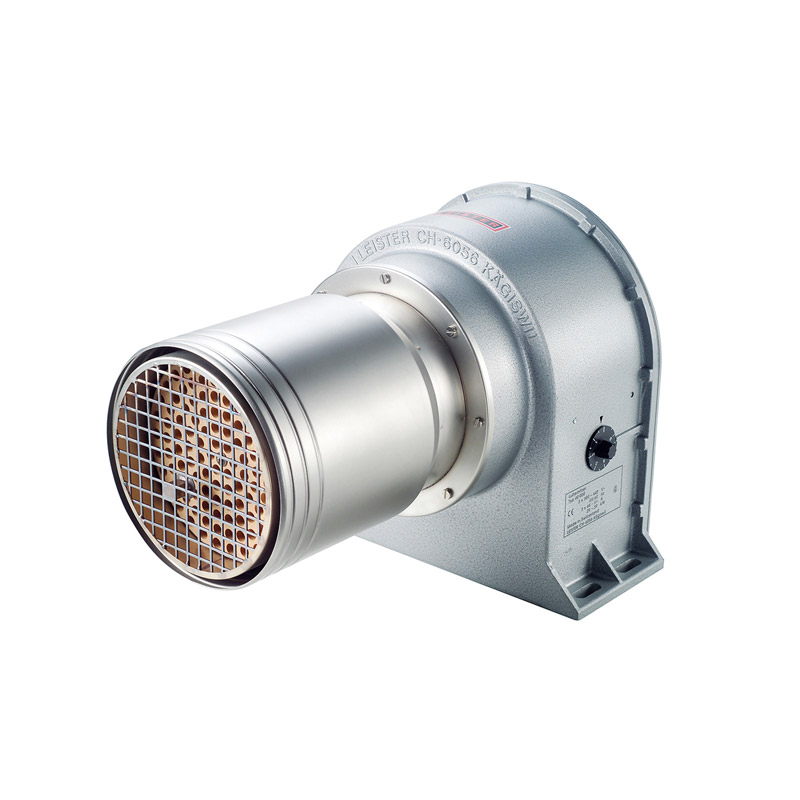

With power of up to 40 kW, the LHS 91 air heater is the tool for even the most demanding of heating applications. With this performance the LHS 91 is even capable of replacing many gas-fired heaters.
LHS 91 SYSTEM – 3 x 400 V / 32 kW
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 3 x 400 |
| Power | W | 32000 |
| Max. air outlet temperature | °C | 650 |
| Max. air inlet temperature | °C | 50 |
| Max. ambient temperature | °C | 60 |
| Relative humidity (non condensing) | % | 5 – 95 |
| Size (L × B × H) | mm | 444 × 312 × 306 |
| Weight | kg | 13.5 |
| Conformity mark |  |
|
| Protection class I |  |
LHS 91 SYSTEM – 3 x 400 V / 11 kW
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 3 x 400 |
| Power | W | 11000 |
| Max. air outlet temperature | °C | 650 |
| Max. air inlet temperature | °C | 50 |
| Max. ambient temperature | °C | 60 |
| Relative humidity (non condensing) | % | 5 – 95 |
| Size (L × B × H) | mm | 444 × 312 × 306 |
| Weight | kg | 13.5 |
| Conformity mark | |
|
| Protection class I | |
LHS 91 SYSTEM – 3 x 480 V / 32 kW
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 3 x 480 |
| Power | W | 32000 |
| Max. air outlet temperature | °C | 650 |
| Max. air inlet temperature | °C | 50 |
| Max. ambient temperature | °C | 60 |
| Relative humidity (non condensing) | % | 5 – 95 |
| Size (L × B × H) | mm | 444 × 312 × 306 |
| Weight | kg | 13.5 |
| Conformity mark | |
|
| Protection class I | |
LHS 91 SYSTEM – 3 x 480 V / 40 kW
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 3 x 480 |
| Power | W | 40000 |
| Max. air outlet temperature | °C | 650 |
| Max. air inlet temperature | °C | 50 |
| Max. ambient temperature | °C | 60 |
| Relative humidity (non condensing) | % | 5 – 95 |
| Size (L × B × H) | mm | 444 × 312 × 306 |
| Weight | kg | 13.5 |
| Conformity mark | |
|
| Protection class I | |
