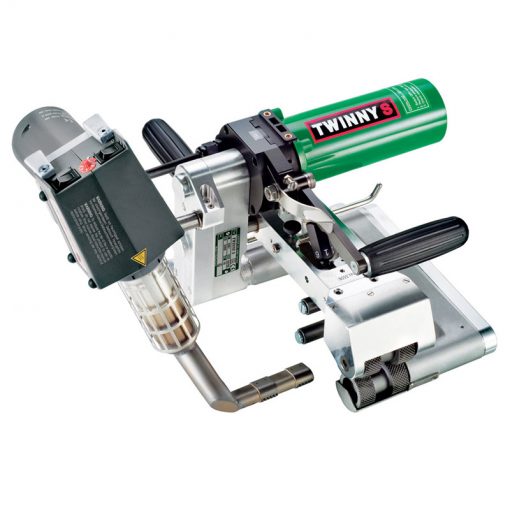

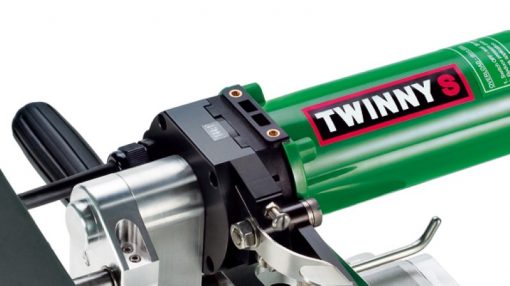

This lightweight tool TWINNY S is optimized for overhead welding and is ideal for thin materials used in civil engineering and tunnel construction.
This lightweight tool is optimized for overhead welding and is ideal for thin materials used in civil engineering and tunnel construction. Leister offers a choice between replaceable combi-wedges with or without test channel.
TWINNY S – Civil engineering / 230 V / 2900 W / with test channel / combi-wedge short / EU-plug
| Attribute | Unit | Value |
|---|---|---|
| Speed (144:1) | m/min | 1.4 – 4 (6) |
| Welding pressure | N | 500 |
| Power | W | 2900 |
| Speed (256:1) | m/min | 0.2 – 2.5 |
| Voltage | V~ | 120 / 230 |
| Max overlap | mm | 125 |
| Temperature | °C | 80 – 600 |
| Size (L × B × H) | mm | 350 × 390 × 270 |
| Weight | kg | 6.5 – 6.9 |
| Conformity mark |  |
|
| Protection class II |  |
TWINNY S – Civil engineering / 230 V / 2900 W / with test channel / combi-wedge long / EU-plug
| Attribute | Unit | Value |
|---|---|---|
| Speed (256:1) | m/min | 0.2 – 2.5 |
| Welding pressure | N | 1000 |
| Power | W | 2900 |
| Speed (144:1) | m/min | 1.4 – 4 (6) |
| Voltage | V~ | 120 / 230 |
| Max overlap | mm | 125 |
| Temperature | °C | 80 – 600 |
| Size (L × B × H) | mm | 350 × 390 × 270 |
| Weight | kg | 6.5 – 6.9 |
| Conformity mark | |
|
| Protection class II | |
TWINNY S – Civil engineering / 6 m/min / 230 V / 2900 W / with test channel / combi-wedge short / EU-plug
| Attribute | Unit | Value |
|---|---|---|
| Speed (144:1) | m/min | 1.4 – 4 (6) |
| Welding pressure | N | 500 |
| Power | W | 2900 |
| Speed (256:1) | m/min | 0.2 – 2.5 |
| Voltage | V~ | 120 / 230 |
| Max overlap | mm | 125 |
| Temperature | °C | 80 – 600 |
| Size (L × B × H) | mm | 350 × 390 × 270 |
| Weight | kg | 6.5 – 6.9 |
| Conformity mark | |
|
| Protection class II | |
TWINNY S – Civil engineering / 200 V / 2200 W / 50mm / with test channel / combi-wedge long / without-plug
| Attribute | Unit | Value |
|---|---|---|
| Speed (256:1) | m/min | 0.2 – 2.5 |
| Voltage | V~ | 200 |
| Welding pressure | N | 1000 |
| Power | W | 2200 |
| Speed (144:1) | m/min | 1.4 – 4 (6) |
| Max overlap | mm | 125 |
| Temperature | °C | 80 – 600 |
| Size (L × B × H) | mm | 350 × 390 × 270 |
| Weight | kg | 6.5 – 6.9 |
| Conformity mark | |
|
| Protection class II | |
TWINNY S – tunnel construction / 230 V / 2900 W / with test channel / combi-wedge long / EU-plug
| Attribute | Unit | Value |
|---|---|---|
| Speed (256:1) | m/min | 0.2 – 2.5 |
| Welding pressure | N | 1000 |
| Power | W | 2900 |
| Speed (144:1) | m/min | 1.4 – 4 (6) |
| Voltage | V~ | 120 / 230 |
| Max overlap | mm | 125 |
| Temperature | °C | 80 – 600 |
| Size (L × B × H) | mm | 350 × 390 × 270 |
| Weight | kg | 6.5 – 6.9 |
| Conformity mark | |
|
| Protection class II | |
TWINNY S – Tunnel construction / 120 V / 1900 W / with test channel / combi-wedge long / without plug
| Attribute | Unit | Value |
|---|---|---|
| Speed (256:1) | m/min | 0.2 – 2.5 |
| Voltage | V~ | 120 |
| Welding pressure | N | 1000 |
| Power | W | 1900 |
| Speed (144:1) | m/min | 1.4 – 4 (6) |
| Max overlap | mm | 125 |
| Temperature | °C | 80 – 600 |
| Size (L × B × H) | mm | 350 × 390 × 270 |
| Weight | kg | 6.5 – 6.9 |
| Conformity mark | |
|
| Protection class II | |
