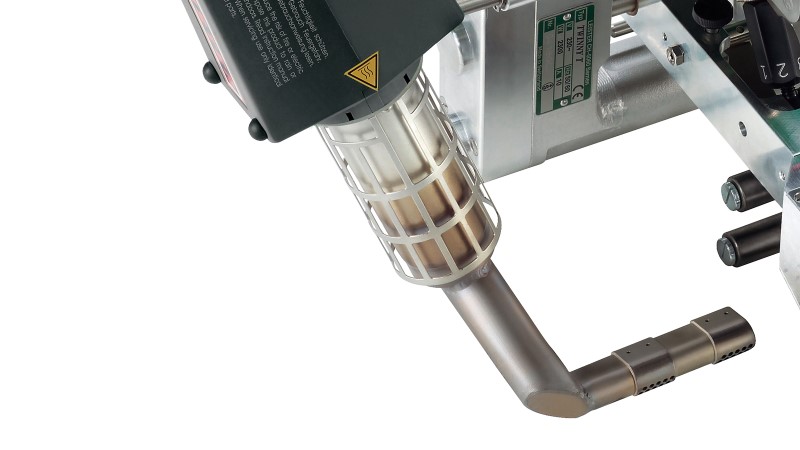

The TWINNY T is excellent for welding PVC and other thin or soft membranes.
The TWINNY T is excellent for welding PVC and other thin or soft membranes. It is available either with or without air-test channel.
TWINNY T – Civil engineering / 230 V / 2300 W / with test channel / combi-wedge long / EU-plug
| Attribute | Unit | Value |
|---|---|---|
| Power | W | 2300 |
| Voltage | V~ | 230 |
| Max overlap | mm | 125 |
| Temperature | °C | 80 – 560 |
| Speed | m/min | 0.8 – 3.2 |
| Welding pressure | N | 100 – 1000 |
| Size (L × B × H) | mm | 340 × 360 × 245 |
| Weight | kg | 6.9 – 7.9 |
| Conformity mark |  |
|
| Protection class I |  |
TWINNY T – Civil engineering / 230 V / 2300 W / with test channel / combi-wedge short / EU-plug
| Attribute | Unit | Value |
|---|---|---|
| Power | W | 2300 |
| Voltage | V~ | 230 |
| Max overlap | mm | 125 |
| Temperature | °C | 80 – 560 |
| Speed | m/min | 0.8 – 3.2 |
| Welding pressure | N | 100 – 1000 |
| Size (L × B × H) | mm | 340 × 360 × 245 |
| Weight | kg | 6.9 – 7.9 |
| Conformity mark | |
|
| Protection class I | |
TWINNY T – Civil engineering / 200 V / 2200 W / with test channel / combi-wedge long / without plug
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 200 |
| Power | W | 2200 |
| Max overlap | mm | 125 |
| Temperature | °C | 80 – 560 |
| Speed | m/min | 0.8 – 3.2 |
| Welding pressure | N | 100 – 1000 |
| Size (L × B × H) | mm | 340 × 360 × 245 |
| Weight | kg | 6.9 – 7.9 |
| Conformity mark | |
|
| Protection class I | |
TWINNY T – Tunnel construction / 230 V / 2300 W / with test channel / combi-wedge short / EU-plug
| Attribute | Unit | Value |
|---|---|---|
| Power | W | 2300 |
| Voltage | V~ | 230 |
| Max overlap | mm | 125 |
| Temperature | °C | 80 – 560 |
| Speed | m/min | 0.8 – 3.2 |
| Welding pressure | N | 100 – 1000 |
| Size (L × B × H) | mm | 340 × 360 × 245 |
| Weight | kg | 6.9 – 7.9 |
| Conformity mark | |
|
| Protection class I | |
TWINNY T – Tunnel construction / 120 V / 1900 W / roller 50 mm / with test channel / combi-wedge short / without plug
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 120 |
| Power | W | 1900 |
| Max overlap | mm | 125 |
| Temperature | °C | 80 – 560 |
| Speed | m/min | 0.8 – 3.2 |
| Welding pressure | N | 100 – 1000 |
| Size (L × B × H) | mm | 340 × 360 × 245 |
| Weight | kg | 6.9 – 7.9 |
| Conformity mark | |
|
| Protection class I | |
General Catalogs :
GC – General Catalog Plastic Welding (12,92 MB)
BR – Accessories Hot air Hand Tools (3,63 MB)
Manuals :
BA – TWINNY T (7,86 MB)
