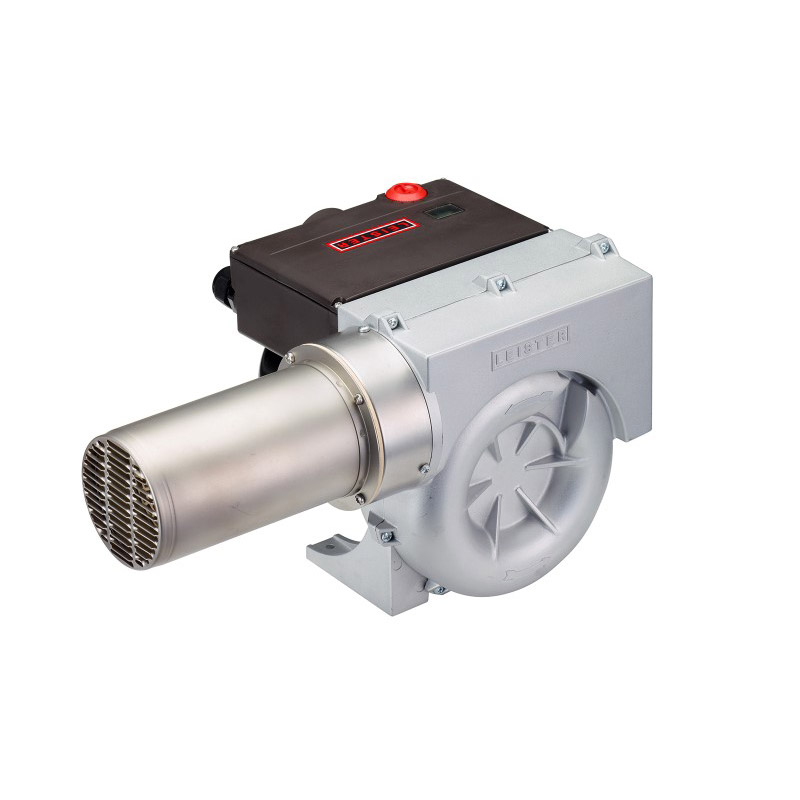

The muscle man among the hot-air blowers leaves no doubts about its performance. It is compactly built and easy to integrate into industrial processes. Just as Leister’s smaller hot-air blowers, VULCAN SYSTEM can be controlled remotely through a standard analog interface.
VULCAN SYSTEM 6 kW
The powerhouse of the hot-air blowers. Its performance speaks for itself.
Technical Data
VULCAN SYSTEM – 3 × 230 V / 10 kW
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 3 × 230 |
| Power | W | 10000 |
| Heating power steplessly adjustable with potentiometer | • | |
| Standard control interface through a | 4 – 20 mA or a 0 – 10 V signal | • |
| Integrated power electronics | • | |
| Protection against heating element or device overheating | • | |
| Brushless blower motor with FC control | • | |
| Alarm output | • | |
| Integrated temperature control | • | |
| Integrated temperature probe | • | |
| Display for showing the setpoint and actual values | • | |
| Max. air outlet temperature | °C | 650 |
| Max. air flow (20°C) 3 × 230 V~ | l/min | 850 1500 |
| Max. air flow (20°C) 400 V~ / 3 × 480 V~ | l/min | 950 1700 |
| Pressure | kPa | 3.1 – 4.0 |
| Noise emission level | dB(A) | 65 |
| Size (L × B × H) | mm | 410 × 276 × 231 |
| Weight | kg | 9.3 |
| Conformity mark |  |
|
| Approval mark |  |
|
| Protection class I |  |
VULCAN SYSTEM – 3 × 400 V / 11 kW
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 3 × 400 |
| Power | W | 11000 |
| Heating power steplessly adjustable with potentiometer | • | |
| Standard control interface through a | 4 – 20 mA or a 0 – 10 V signal | • |
| Integrated power electronics | • | |
| Protection against heating element or device overheating | • | |
| Brushless blower motor with FC control | • | |
| Alarm output | • | |
| Integrated temperature control | • | |
| Integrated temperature probe | • | |
| Display for showing the setpoint and actual values | • | |
| Max. air outlet temperature | °C | 650 |
| Max. air flow (20°C) 3 × 230 V~ | l/min | 850 1500 |
| Max. air flow (20°C) 400 V~ / 3 × 480 V~ | l/min | 950 1700 |
| Pressure | kPa | 3.1 – 4.0 |
| Noise emission level | dB(A) | 65 |
| Size (L × B × H) | mm | 410 × 276 × 231 |
| Weight | kg | 9.3 |
| Conformity mark | |
|
| Approval mark | |
|
| Protection class I | |
VULCAN SYSTEM – 3 × 480 V / 11 kW
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 3 × 480 |
| Power | W | 11000 |
| Heating power steplessly adjustable with potentiometer | • | |
| Standard control interface through a | 4 – 20 mA or a 0 – 10 V signal | • |
| Integrated power electronics | • | |
| Protection against heating element or device overheating | • | |
| Brushless blower motor with FC control | • | |
| Alarm output | • | |
| Integrated temperature control | • | |
| Integrated temperature probe | • | |
| Display for showing the setpoint and actual values | • | |
| Max. air outlet temperature | °C | 650 |
| Max. air flow (20°C) 3 × 230 V~ | l/min | 850 1500 |
| Max. air flow (20°C) 400 V~ / 3 × 480 V~ | l/min | 950 1700 |
| Pressure | kPa | 3.1 – 4.0 |
| Noise emission level | dB(A) | 65 |
| Size (L × B × H) | mm | 410 × 276 × 231 |
| Weight | kg | 9.3 |
| Conformity mark | |
|
| Approval mark | |
|
| Protection class I | |
