Plastic Welding Application

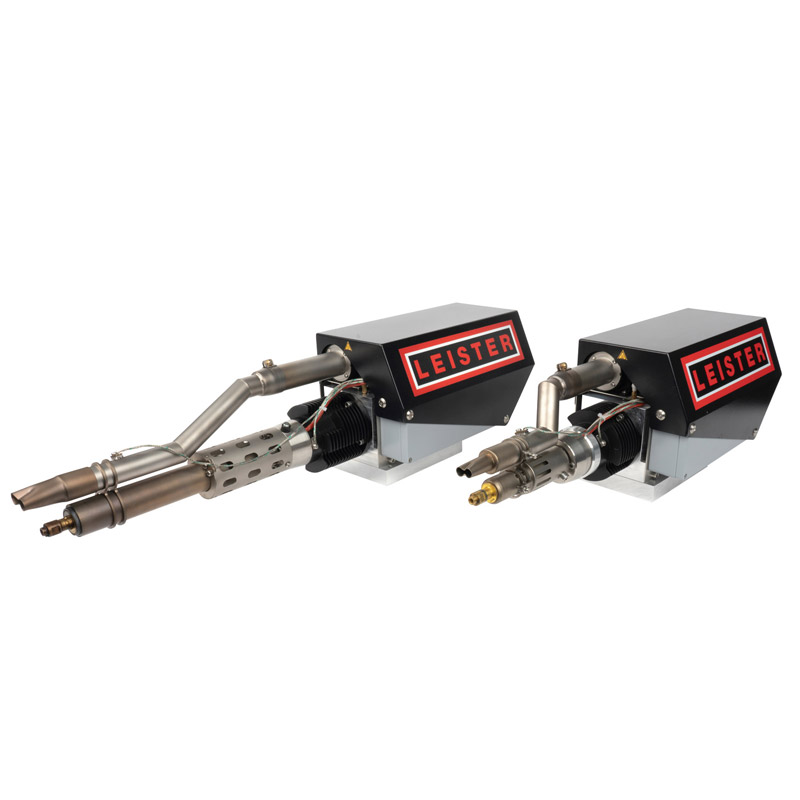

WELDPLAST 200-i / 600-i

หมวดหมู่: ,
  • Customized: Depending on requirements – choose between extruder modules which can be extended to meet specific needs
  • Automated: Designed for automated continuous operation

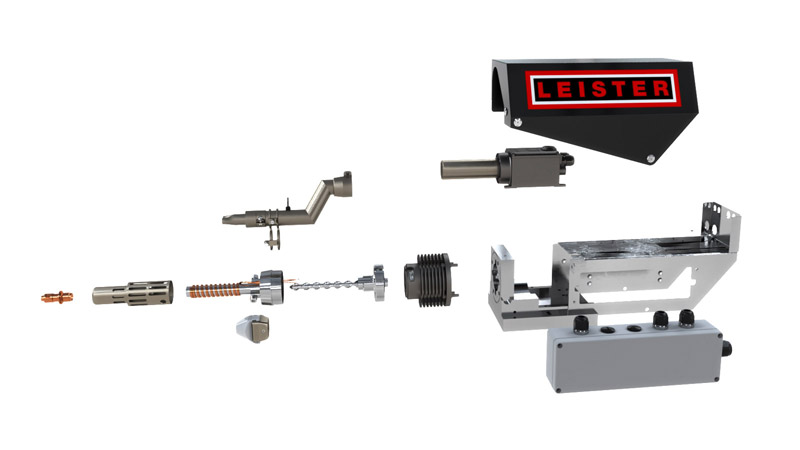

  • Modular: Select an extruder module and simply add the relevant hot air and communication components
  • Controlled: Monitor and control all parameters such as temperatures and emissions
  • Up to date: All components are compliant with current industry standards

Technical Data

WELDPLAST 200-i

Attribute Unit Value
Voltage V~ 230
Power W 600
Welding rod mm ∅ 3 – 4
Output ∅ 4 kg / h 2
Material HD-PE, LD-PE, PP, PVC-U, PVC-C, PVDF, ECTFE, ABS, PC, PA, PS, PUR
Weight (fully loaded) kg 15
Dimensions full disassembly (L × W × H) mm 660 × 191 × 220
Protection class I Protection Class I

WELDPLAST 600-i

Attribute Unit Value
Voltage V~ 230
Power W 800
Welding rod mm ∅ 4 – 5
Output ∅ 5 kg / h 6
Material HD-PE, LD-PE, PP
Weight (fully loaded) kg 22
Dimensions full disassembly (L × W × H) mm 876 × 191 × 210
Protection class I Protection Class I

Downloads

General Catalogs :
GC – General Catalog Plastic Welding (12,92 MB)
BR – Accessories Hot air Hand Tools (3,63 MB)

Manuals :
BA – WELDPLAST 200-i/600-i (1,62 MB)

VDO

Robotic extrusion welding and 3D printing with WELDPLAST 200-i and 600-i
