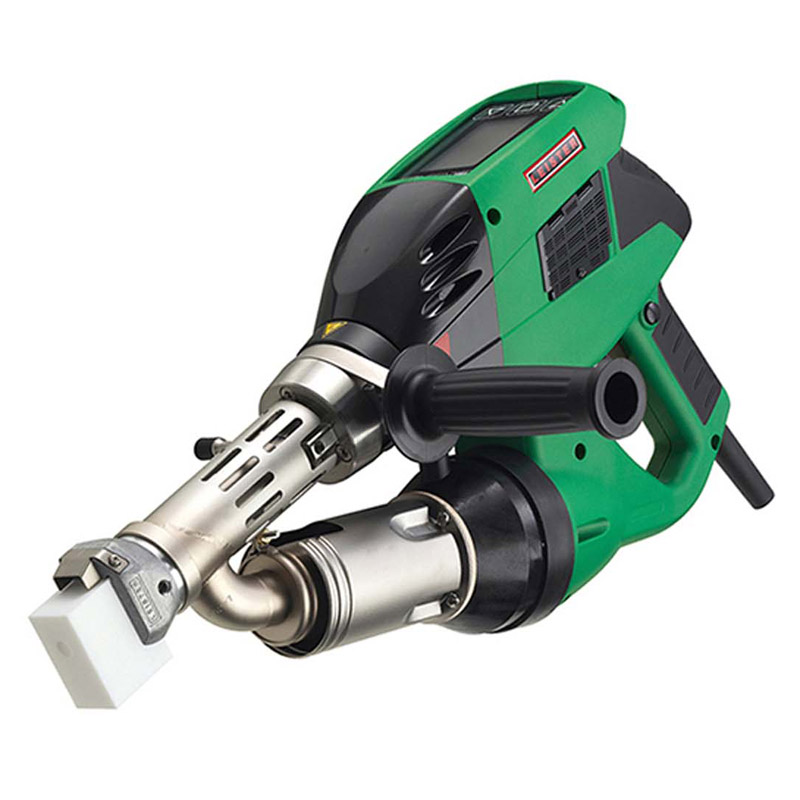

The WELDPLAST S2 is a compact, ergonomically designed workhorse. The handy size extrurusion welder puts out two kilograms per hour without difficulty.
The WELDPLAST S2 is a compact, ergonomically designed workhorse. The handy-sized extrusion welder puts out 2 kg (4.4 lbs.) per hour of extrudate and can even weld TPO materials without difficulty.
WELDPLAST S2 – 230 V / 3000 W / EU-plug
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 230 |
| Power | W | 3000 |
| Max. air outlet temperature | °C | 350 |
| Max. Plastification temperature | °C | 260 |
| Material | PE / PP | |
| Welding rod | mm ∅ | 3 – 4 |
| Output ∅ 3 | kg / h | PE: 0.6 – 1.3 / PP: 0.5 – 1.2 |
| Output ∅ 4 | kg / h | PE: 1.0 – 2.3 / PP: 0.9 – 2.0 |
| Size (L × B × H) | mm | 450 × 98 × 260 |
| Weight | kg | 5.8 |
| Conformity mark |  |
|
| Protection class I |  |
General Catalogs :
GC – General Catalog Plastic Welding (12,92 MB)
BR – Accessories Hot air Hand Tools (3,63 MB)
Manuals :
BA – WELDPLAST S2 – PVC – TPO DE/GB/FR/IT/ES/NL/NO/PT/SV (3,81 MB)
Brochures :
BR – Plastic Fabrication (7,75 MB)
